Geared Adapters

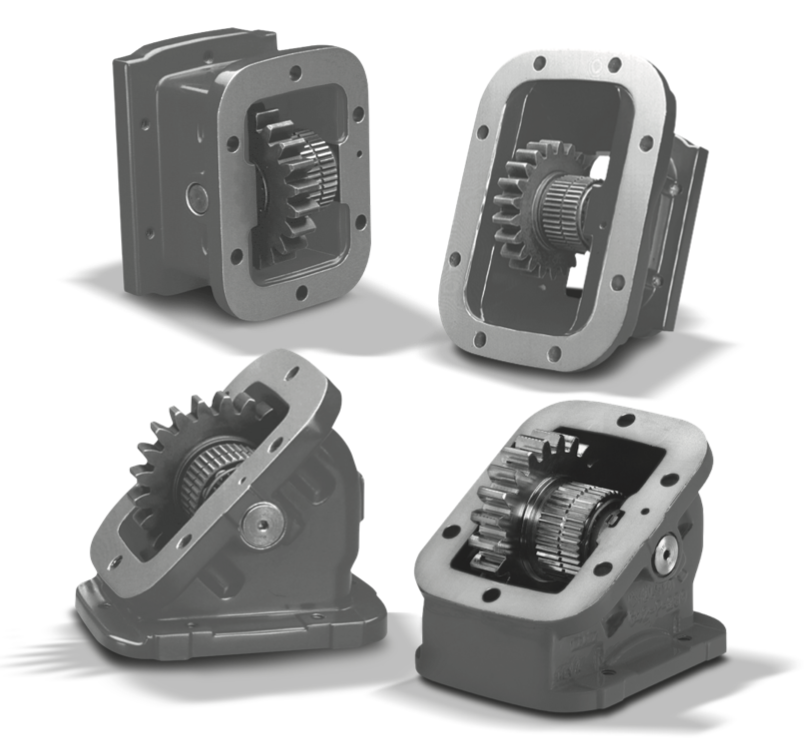

The 626, 628, 630 and 645 family of adapters are designed to simplify your selection and installation of a geared adapter when you require a change in rotation or are trying to clear an obstacle.

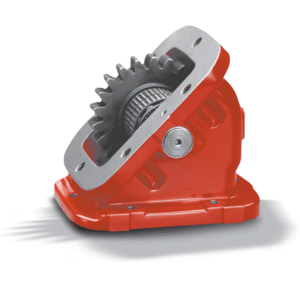

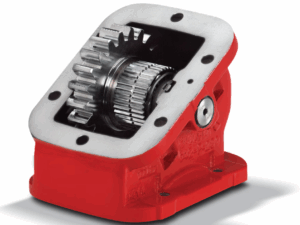

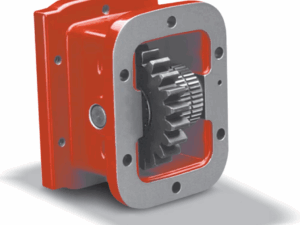

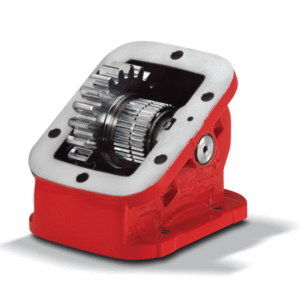

These adapters use the same input gears as the 442 and 489 Series PTOs, and are available in kits. The 626 adapter fits a 6-Bolt opening and moves the PTO straight out from the transmission. The 630 fits a 6-Bolt opening and angles the PTO down at a 30° angle. The 645 fits a 6-Bolt opening and angles the PTO down at a 45° angle. The 628 adapter fits an 8-Bolt transmission opening and accommodates a 6-Bolt PTO.
Using the 626, 628, 630 or 645 will change the direction of PTO rotation. It will not change the speed of the PTO.
